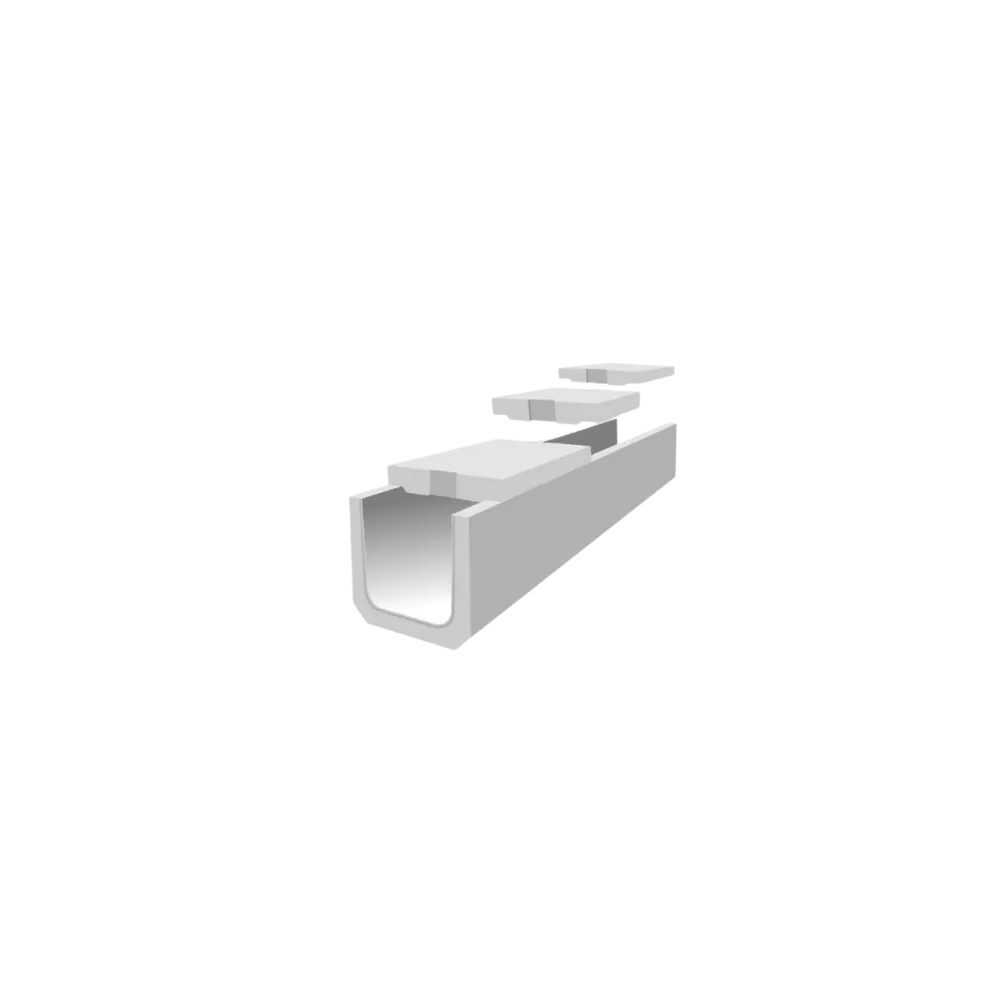

U Shape Drain (T6)

Product load   : T6-1, T6-2, T6-3, T6-4, T6-5, T6-6, T6-7, T6-8, T6-9, T6-10, T6-11, T6-12

Dimensions of  U Shape Drain Light Duty T-6 (MM)

Size (MM)
axb : 300X300, 300X450, 300X600, 450X450, 450X600, 450X750, 450X900, 600X600, 600X400, 600X750, 750X750, 900X900

L :  2000
A : 450, 450, 450, 610, 610, 610, 610, 760, 750, 760, 920, 1060
H : 370, 520, 680, 520, 690, 840, 1000, 690, 380, 840, 850, 1020
a : 300, 300, 300, 450, 450, 450, 450, 600, 600, 600, 750, 900
b : 300, 450, 600, 450, 600, 750, 900, 600, 400, 750, 750, 900
c : 75, 75, 75, 80, 80, 80, 80, 80, 75, 85, 85, 85
d: 70, 80, 80, 80, 80, 80, 100, 90, 80, 100, 100, 100
e : 70, 70, 80, 70, 80, 90, 100, 90, 80, 90, 100, 120
f : 280, 280, 280, 410, 410, 390, 390, 550, 550, 550, 690, 845
